iNode Serial Transceiver UART

BLE adapter module with a UART interface for integration with your own controller.

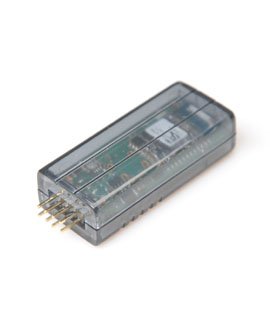

iNode ST UART – 14 × 33 mm BLE module

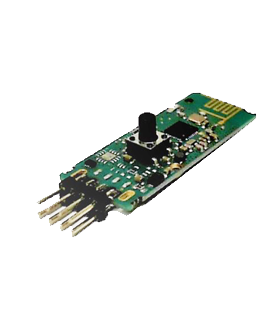

iNode Serial Transceiver UART iNode Serial Transceiver UART – module
  • BLE 5.1
  • UART

The iNode Serial Transceiver UART is a Bluetooth Low Energy adapter module with an RS232 (low-voltage) input and output. It can be integrated into your own controller to enable simple communication with BLE devices, such as the iNode. Control is carried out using a basic set of HCI commands sent as HEX strings – for example, to enable scanning, send the string 010C20020100. iNode LAN (TCP/IP, WebSocket) and the iNode Serial Transceiver USB (COM port) use the same method of communication.

Applications

  • PLC controllers
  • home automation controllers
  • gate automation controllers
  • data acquisition
Request a quote User manual PL Downloads

Technical specifications

Specifications
Power supply3.3V or 5V
Dimensions14 x 33 mm
Features
FeaturesBLE and UART interfaces
Support for the HCI protocol
LED
Low power consumption

Downloads

User manual – iNode Serial Transceiver UART PL
BT 4.0 version (legacy)
