iNode LAN enables BLE (Bluetooth Smart, IoT) devices to operate within Ethernet networks: LAN, Wi-Fi and the Internet. Among other things, it allows you to extend the range of iNode Care Sensors within a building (BLE over UDP technology – transmitting packets from the LAN to BLE) or to track the movement of iNode Nav tags online. The iNode LAN Central firmware is available, which periodically sends data in JSON format to an MQTT or HTTP/POST server. The browser-based iNode Setup, iNode Monitor and iNode MQTT Monitor provide remote access to the sensors. A simple HTML page using WebSocket and JavaScript allows you to view the contents of BLE broadcast packets in real time; the page’s code can be easily modified. The device can be controlled in exactly the same way via TCP/IP Telnet.
Applications
- tracing goods
- data acquisition
- heating, ventilation and air conditioning (HVAC)
- industry
- home automation
- alarm systems and property protection
Technical specifications
| Communications | |
|---|---|
| Radio communication | Bluetooth Low Energy 2402–2480 MHz (GFSK) 10/100 Mbps Ethernet |
| Interfaces and protocols | RJ-45 Ethernet 10/100 Mbps (10BaseT) ARP, SSDP, UDP, TCP/IP, DHCP, SNTP, HTTP, DNS WebSocket (max. 2 simultaneous connections) TCP/IP Telnet, port 5500 BLE over UDP (multicast / unicast / broadcast) HCI commands MQTT/HTTP POST (JSON) – in the iNode LAN Central firmware |
| Transmission power | BLE: max. +8 dBm (configurable from -18 to +8 dBm) |

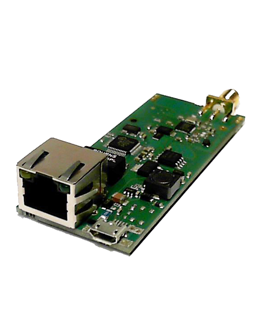

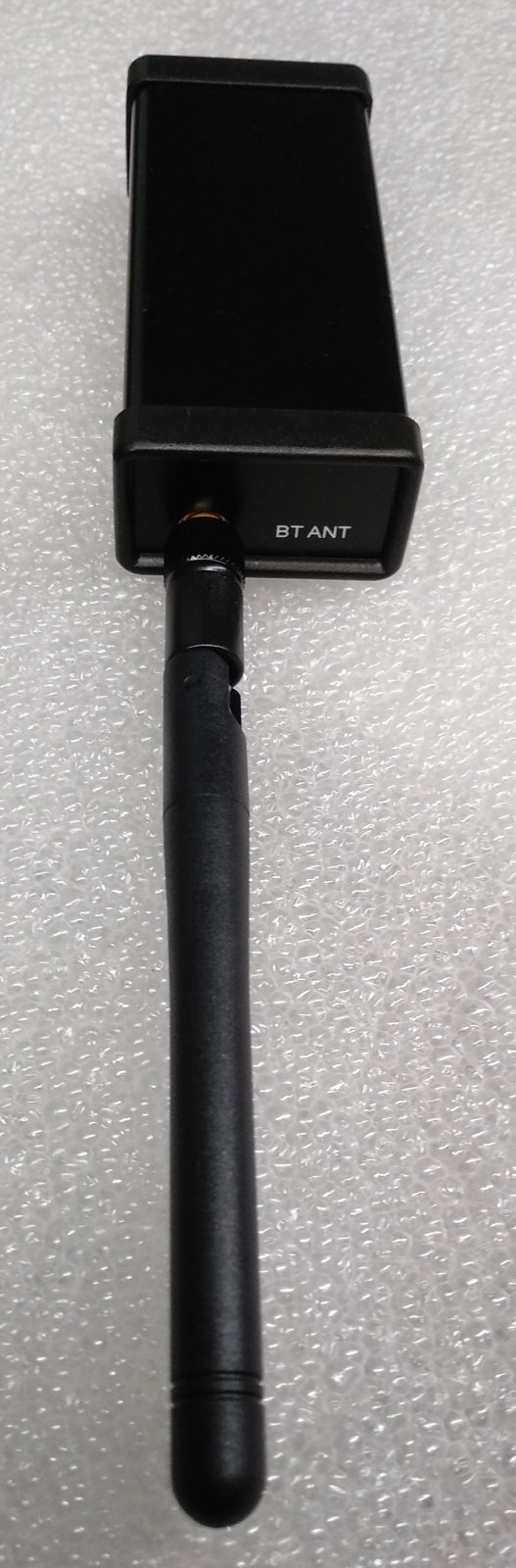

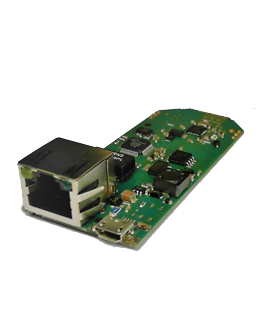

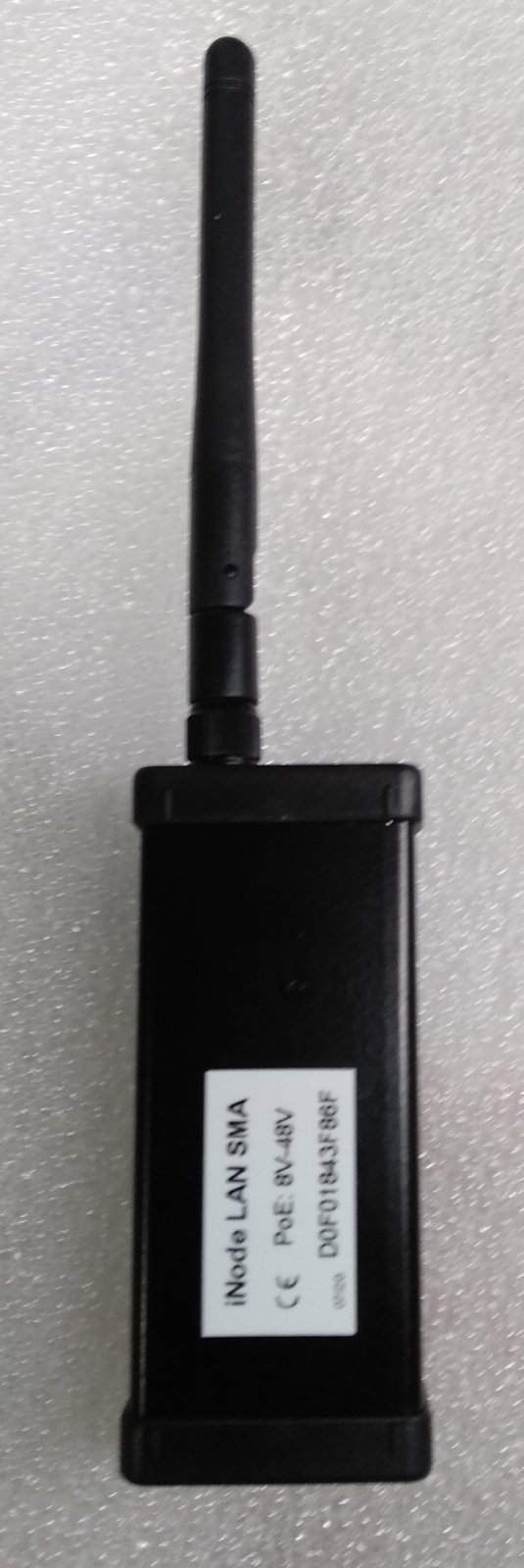

| Antenna | micro USB and 802.3af POE versions: internal MIFA-type PCB, 1.6 dBi micro USB SMA and 802.3af POE SMA versions: external RP-SMA female, 3 dBi |
| Power supply | |
| Power supply | micro USB / micro USB SMA versions: 5 V micro USB (85 mA @ 10 Mbps; 130 mA @ 100 Mbps) or passive PoE 6–48 V DC (40 mA @ 24 V; 60 mA @ 12 V; 120 mA @ 6 V; at 100 Mbps) POE / POE SMA versions: active PoE IEEE 802.3af 48 V DC, ~1 W |
| Housing and operating conditions | |

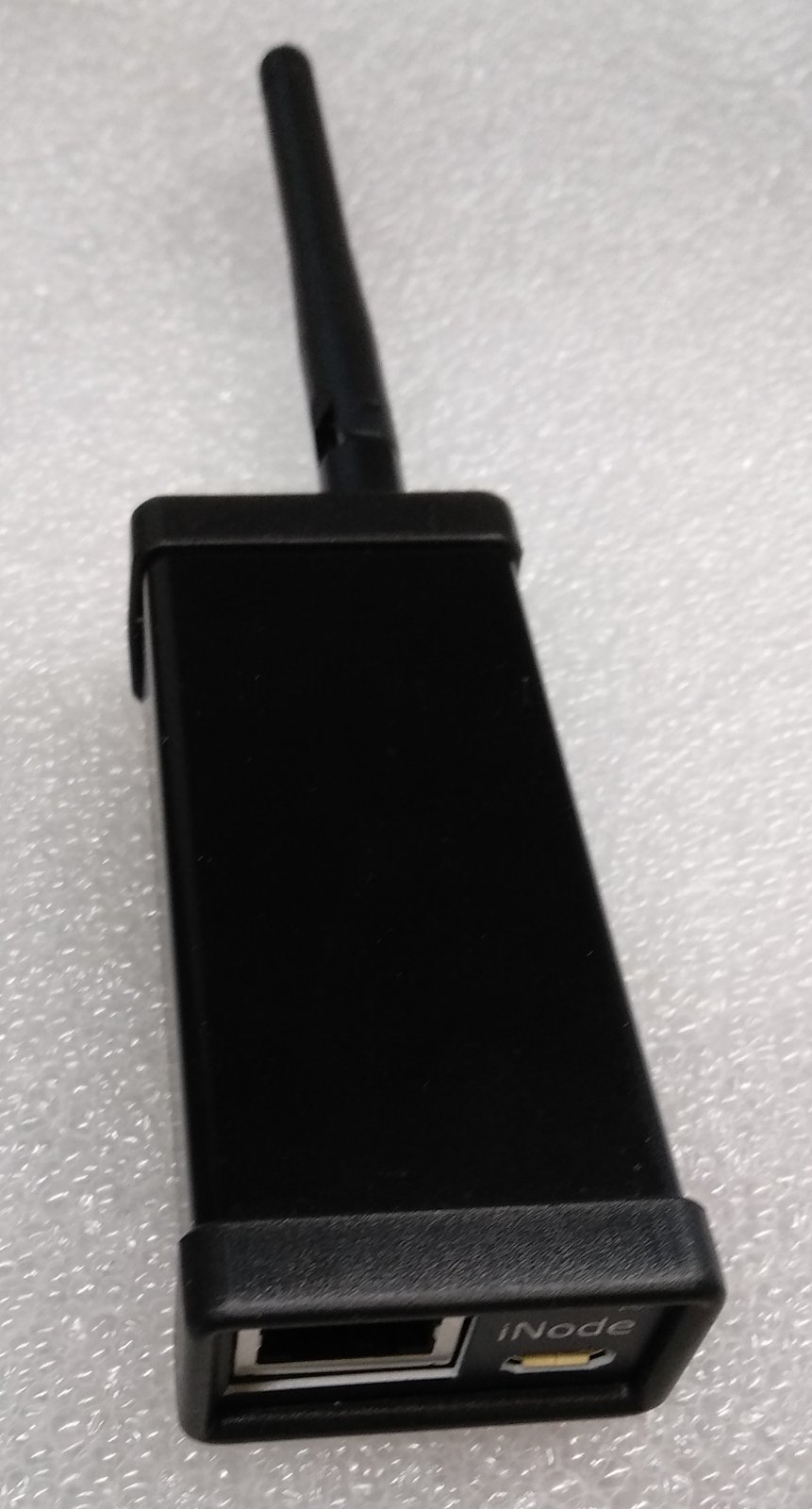

| Housing and dimensions | metal, 81 × 38 × 22 mm versions: micro USB, micro USB SMA, PoE 802.3af, PoE 802.3af SMA |
| Operating temperature | -20…+45°C |
| Operating humidity | 35–80 %RH |
| Weight | 45 g |
| Features | |
| Functions and configuration | BLE operating mode: AUTO SCAN or REPEATER (sensor range extension – BLE over UDP) BLE scanning 100% of the time (scan window/scan interval = 1) Configuration via a web browser: operating mode, BLE power, IP address (static/DHCP), subnet mask, gateway, DNS, NTP server, device name on the LAN and BLE, IP address and port for UDP packets, user password, administrator password HTTP server: 2.9 MB per user page + 1 MB for system use real-time preview of BLEbroadcast packets (WebSocket/JavaScript, customisable HTML page) remote control via Telnet (as with WebSocket) remote firmware update via a web browser; alternative iNode LAN Central firmware two LEDs (LINK, STATUS); reset button (factory settings) temperature sensor (resolution 1°C) |
| Radio chip | CSR1010 W5500 (Ethernet) |
